JR-412 QS - Sistema de observación de 12"

JR-412 QS
12" B&W Monitor with QUAD system
built-in & 1/3" CCD security camera

SPECIFICATIONS


MONITOR
Picture Tube...............................................12"B/W CRT
Power Sources..........................Free voltage (95V-260V)
Current Consump...........................................40W Max
Resolution...................................................600TV lines
Scanning Resolution......................15.625KHz/15.743KHz
...................................................................5OHz/60Hz
Vídeo Input Signal..............................1.0V p-p composit
Ouad Pictures to.........................................be screened
Assurance Temp.......................................-10°C ˜ 50°C
Dimension (w x h x d)......................305 x 300 x 310mm
Weight..............................................................7.85kgs

CAMERA
Image Sensor..................................................1/3" eco
System........................................Black/White CCIR,EIA
Current Consump...........................................2.4W Max
Resolution....................................15.625KHz/15.743KHz
...................................................................50Hz/60Hz
Iris Control.....................controlled by Electronic System
SIN ratio..........................................................>=45dB
Lens.....................................Fixed focus F=2.0 standard
Light Sensitivity..................................................0.1 Lux
Assurance Temp........................................-10°C ˜ 50°C
Dimention (wxhxd)....................................70x54x80mm

REMOTE CONTROLLER
Operation...............................................by infrared LED
Power Sources.......DC3V(DryCell AAAM size 1.5V x 2pcs)
Power consump...........................................100mW Max
Distance of transmission...............................7meter(Min)
Operation Angle of Infrared LED ±30° (Up & down, right & Ieft)
Weight............................................70g(without dry cell)
Dimension (wxh xd).................................50x156x38mm

OPTION

• Time generator built-in
• Extra camera
• C/CS mount lens changeable(6mm, 8mm, 12mm

FEATURES


APPLICATION
Private houses, Apartment, Offices, Entrance, Exit, Faetones, Hospitais, Hoteis, Kindergartens, Schools, Garages, Banquet hall, Reception rooms, Waiting rooms, Book stores, Jeweler' s stores, Super markets, Cha¡n stores, and so on.

SPECIFICATIONS
• Quad pictu res on Monitor to be screened.
• Remote control to be applied.
• Video doorphone available by connection of Door belí to the Sensor contact point on the Camera.
•· Door open function(by connection of Monitor to the automatio electrical Door Iock
DC 12V/1 MAX).
• 4 Camera connections available.
• Extra Camera to be installed with BNC plug.
• 2 way audio system.
•· LEO segment applied.
• Alarm function available(in case of Sensor to be connected to Camera).
• Sensor to be connectable to Camera.
• Antitheft alarm on the moniter, when Camera is robbed or Din cable is cut.
• Siave Monitor(2 Monitor to be connectable)
• Auto skipping(Automatically skip the channel without camera installed).
• Permanent auto memory setting.
• Record & review of the image & sound with VCR.
• Auto scanning(3 to 60 seconds)
• Free voltage(From 95V to 260V) applied.
• Metal casing to prevent the Monitor from electnic/magnetic interference.

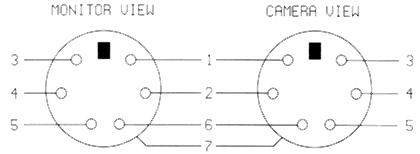

El CABLE DIN



VISTA DEL MONITOR
1)B+12V OUT
2)VIDEO IN
3)AUDIO B+ SWJTCHING
12V OUT4)AUDIO OUT
5)AUDION IN
6)PRUEBA DE CÁMARA
7)GROUND
VISTA DE LA CÁMARA
1)B+12V INPUT
2)VIDEO OUT
3)AUDIO B+SWJTCHING
12V INPUT
4)AUDIO IN
5)AUDIO OUT
6)GROUND
7)GROUND





CONECCION DE UN SENSOR DE ALARMA A LA CAMARA

1. DC 12V OUTPUT
2. GROUND
3. CONTACTO DEL SENSOR
4. GROUND

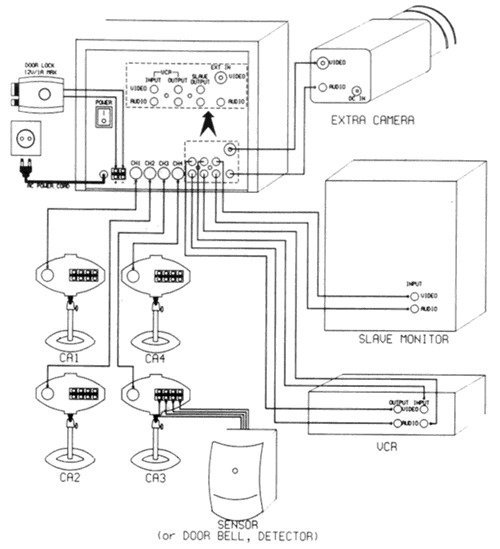

DIAGRAMA DE CABLES
