ELECTRICAL
Signal Format............................................EIA or CCIR
Horizontal Resolution..................................600 TV lines
Quad Screen Resolution............................99,822 pixels
Full Screen Resolution.............................400,050 pixels
Real Time Display........................30 frames per second
Input Signal.................75 Ohm 1Vp-p Composite Signal
Power Requirements...............AC 120V~230V, 50/60 Hz
Power Consumption........................................Max 50W

MECHANICAL
CRT Screen Size.........10" diagonal, 90° deflection angle
Dimensions..................244 (W) 5 242 (H) 5 258 (D) mm
...................................9.6 (W) 5 9.5 (H) 510.2 (D) inch
Weight..............................................................5.1 kg

GENERAL
Operating Temperature......0°C to 40°C (32°F to 104°F)
Storage Temperature.....-25°C to 85°C (-13°F to 185°F)

ACCESSORIES
Optional Accessories...................Still Memory (SM-100)

GENERAL
The M-90Q is a high-performance black & white monitor capable of quad, full-size, and sequential display for use in security surveillance applications.

With over 600 lines of resolution and 30 frames per second, the monitor delivers sharp real-time images in the quad mode.

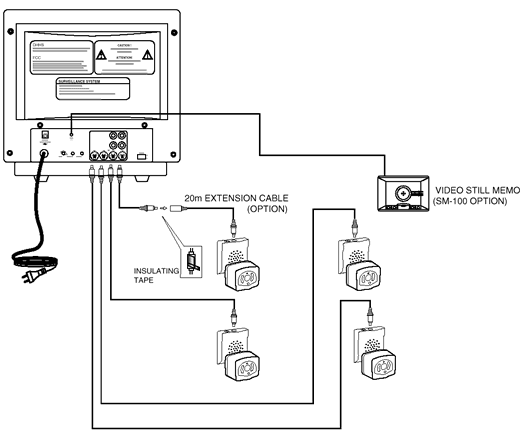

The M-90Q has 4 video/alarm inputs and outputs, automatic hold and bypass functions, channel freeze, and a built-in intercom. When used as a switcher, the dwell time is adjustable from 2 to 60 seconds.

KEY FEATURES
• Quad/Full/Sequential display
• 10 inch, 90° deflection angle tube
• More than 600 lines of resolution
• 4 camera & alarm inputs
• Built-in intercom
• Automatic hold for communication
• Automatic channel bypass
• Channel freeze and release
• Adjustable dwell time (2~60sec)

RECOMMENDED CAMERAS
• C-60 1/3" B&W Camera
• C-60S 1/3" B&W Camera with Sensor
• C-63S 1/3" B&W Camera with Sensor
• C-65S 1/3" B&W Camera with Sensor
• C-66 1/3" B&W Aluminum Case Camera
• C-67S 1/3" B&W Camera with Sensor
