SV-6090 - 10" B&W Observation Monitors

SV6090
10" B&W Observation Monitors

SPECIFICATIONS


ELECTRICAL
Signal Format................................................EIA or CCIR
Horizontal Resolution.....................................600 TV lines
Video in...........................75 Ohm 1Vp-p Composite Signal
Audio in.............................................10K Ohm 50mV rms
Power Requirements...................AC 120V~230V, 50/60 Hz
Power Consumption............................................Max 50W

MECHANICAL
CRT Screen Size............10" diagonal, 90┬░ deflection angle
Dimensions......................244 (W) x 242 (H) x 258 (D) mm
.......................................9.6 (W) x 9.5 (H) x 10.2 (D) inch
Weight...................................................................5.1 kg

GENERAL
Operating Temperature......0┬░C to 40┬░C (32┬░F to 104┬░F)
Storage Temperature....-25┬░C to 85┬░C (-13┬░F to 185┬░F)

ACCESSORIES
Optional Accessories.................Still Memory (SM-100/1000)

FEATURES


GENERAL
The M-90 and M-90D are high-performance black & white observation monitors for use in security surveillance applications.

The M-90 has 4 video/alarm inputs and outputs, automatic or manual scan, automatic hold and bypass functions, and a built-in intercom. When used as a switcher, the dwell time is adjustable from 2 to 60 seconds. In addition to all the features of the M-90, the M90D has an OSD function for displaying time and date.

KEY FEATURES
• Automatic or manual scan
• 10 inch, 90┬░ deflection angle tube
• More than 600 lines of resolution
• 4 camera & alarm inputs
• Built-in intercom
• Automatic hold for communication
• Automatic channel bypass
• Adjustable dwell time (2~60sec)
• LED channel indicator
• On-screen-display (M-90D)

RECOMMENDED CAMERAS
• C-60 1/3" B&W Camera
• C-60S 1/3" B&W Camera with Sensor
• C-63S 1/3" B&W Camera with Sensor
• C-65S 1/3" B&W Camera with Sensor
• C-66 1/3" B&W Aluminum Case Camera





CONTROLS



FRONT CONTROLS

1. Channel (LED indicator)
2. Talk (switch)
3. Alarm (LED indicator)
4. Arm/Disarm (LED indicator)
5. Reset (switch)
6. Power (switch)
7. Channel (switch)
8. Manual/Auto Mode (switch)
9. Camera/AV (switch)
10. Contrast (rotary knob)
11. Bright (rotary knob)
12. Volume (rotary knob)
13. Microphone
14. Speaker

REAR CONTROLS

15. Power Out (12V DC 200mA)
16. Alarm Out (earphone jack)
17. Audio Aux In (RCA)
18. Audio Out (RCA)
19. Video Aux In (RCA)
20. Video Out (RCA)
21. Power Cable
22. Dwell Time (rotary knob)
23. Buzz Volume (rotary knob)
24. V-hold (rotary knob)
25. Camera In (mini DIN)
26. Alarm Signal On/Off (switch)



1. 12V DC
2. Alarm Signal
3. Video
4. N/A (not used)
5. Audio In
6. Audio Out
7. Ground

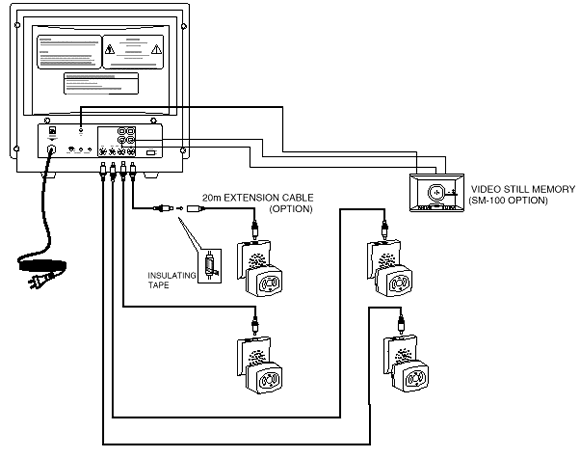

ELECTRICAL CONNECTION
