SV-6080 - 7" B&W Observation Monitor

SV-6080
7" B&W Observation Monitor

SPECIFICATIONS


ELECTRICAL
Signal Format................................................EIA or CCIR
Horizontal Resolution......................................600 TV lines
Video in..........................75 Ohm 1Vp-p Composite Signal
Audio in..........................................50mV rms, 600 Ohms
Power Requirements......................DC 15V 2A AC adaptor
Power Consumption...........................................Max 30W

MECHANICAL
CRT Screen Size............7" diagonal, 90┬░ deflection angle
Dimensions.....................205 (W) x 145 (H) x 220 (D) mm
.......................................8.1 (W) x 5.8 (H) x 8.7 (D) inch
Weight...................................3.0 kg including AC adaptor

GENERAL
Operating Temperature..0┬░C to 50┬░C (32┬░F to 122┬░F)
Storage Temperature -25┬░C to 85┬░C (-13┬░F to 185┬░F)

ACCESSORIES
Accessories Supplied......................................AC adaptor
Optional Accessories........Mounting bracket and screws kit
......................................Still Memory (SM-100/500/1000)

FEATURES


GENERAL
The M-80 is a high-performance black & white observation monitor for use in security surveillance applications.

The M-80 has 4 video/alarm inputs and outputs, automatic or manual scan, automatic hold and bypass functions, and a built-in intercom. When used as switcher, the dwell time is adjustable from 2 to 60 seconds.

KEY FEATURES
• Automatic or manual scan
• 7 inch, 90┬░ deflection angle tube
• More than 600 lines of resolution

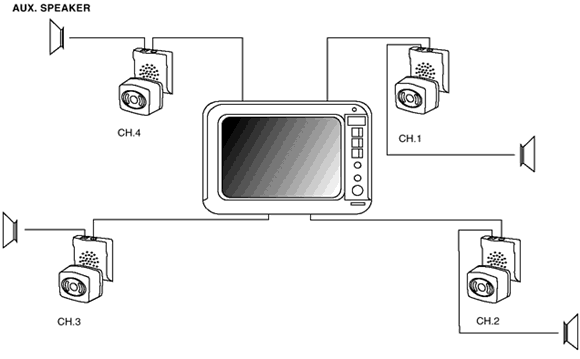

• 4 camera & alarm inputs
• Built-in intercom
• Automatic hold for communication
• Automatic channel bypass
• Adjustable dwell time (2~60sec)
• LED channel indicator








FRONT CONTROLS

1. Alarm (LED indicator)
2. Channel (LED indicator)
3. Power (switch)
4. Manual/Auto Mode (switch)
5. Talk (switch)
6. Speaker
7. Channel (switch)
8. Alarm Reset (switch)
9. Volume (rotary knob)
10. Microphone

BOTTOM CONTROLS

11. V-hold
12. H-hold



REAR CONTROLS
13. Dwell Time (rotary knob)
14. Bright (rotary knob)
15. Contrast (rotary knob)
16. Buzz Volume (rotary knob)
17. Alarm Out
(earphone jack)
18. Alarm Signal On/Off (switch)
19. Audio Out (RCA)
20. Video Out (RCA)
21. Power Cable
22. Camera In (mini DIN)





ELECTRICAL CONNECTION

1. 12V DC
2. Alarm Signal
3. Video
4. N/A (not used)
5. Audio In
6. Audio Out
7. Ground
